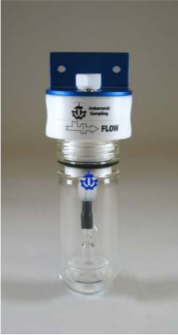

AFP Fluid particle(aerosol) filter
Application The
Ankersmid
aerosols
filter filter extremely small particles liquid / acid fog. It is recommended for
sampling acid gases with a dew point above 100 C. For example, heavy oil, coal
and oxygen glass furnaces.
The filter filters the
extremely small liquid particles, so fine that they are no drop in the cooler
and therefore can not be separated.
Also, the acid
droplets formed by pressure increase after flowmeters. Prevention is better
than filtering.
Avoid
cold spots leading your analysis!
The ideal position is
just before the analyzer
For extra protection,
the implementation gentegreerd with a hydrophobic membrane, which acts as a
liquid stop.
Description The filter element
consists of 2 parts and this filter is the only filter in our series that flows
from inside out
The
inside with very fine fiber strips binds the particles are saturated in the gas
and carry the gas to the large outer layer.
Here, the fog droplets
and it is so by the vertical flow direction and the law of gravity separated
from the gas
Even
if the filter element is completely saturated it remains fully
effective.
Even
normal particles not impacted the operation.
This makes the state
virtually unlimited time.
The fibers are made of
PVDF to avoid reaction with the gas.
The hydrophobic
membrane filter total excludes the moisture out of key.
The glass surface can
easily see what has happened with the liquid and how much is in it.
The seals provide a
tight performance.
Because the standard
size and functionality, the humidifier also compatible with other brands
Commercile.
The glass
is easy to remove without tools.
Optionally, the
humidifier be provided with a fluid sensor, automatic drain, pump, fluid
collecting container or a combination thereof
* Filtering> 99.9999% for
particles> 0.1 m
* Optional hydrophobic membrane to
protect the analyzer
* Visual inspection of
exterior
* Easy
replacement of filter element
* Wall mounting
Documentation
AFP Fluid Partical Filters
