Description

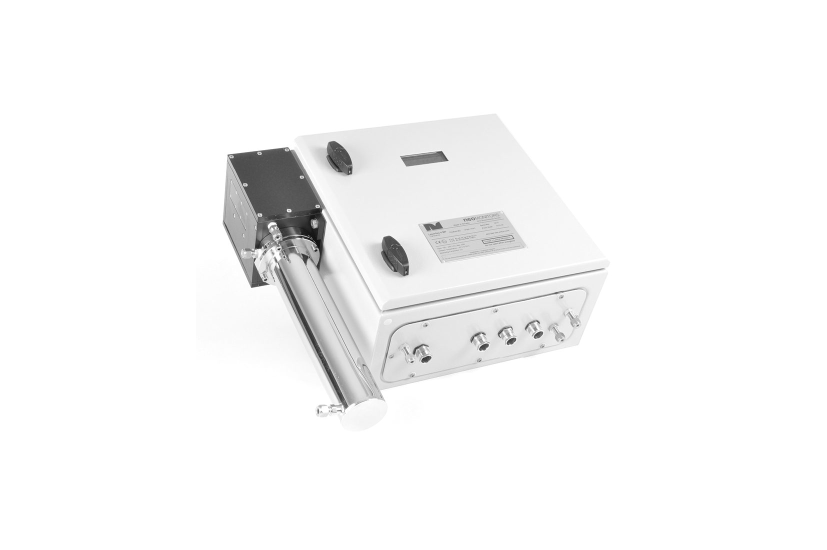

LaserGas™ II Multi Pass combines extractive measurement with a compact analyzer design. The laser beam is coupled into a measurement cell, where it is reflected multiple times between two spherical mirrors in order to enhance the analyzer sensitivity.

The monitor is a turn-key instrument. No other operations than connecting power, sample gas tubes and optional purge are required during installation. LaserGas™ MP provides a reliable and easy to use solution for a wide variety of applications.

Certifications and approvals

• IECEx/ATEX Zone 2
• CSA Class 1/Div 2 A,B,C,D

Features

• Short response time (flow depended)
• Very low detection limits (ppb for most gases)
• No interference from background gases
• Stable calibration
• No zero drift
• Extractive gas analysis in a controlled environment
• No moving parts, no consumables, turn-key instrument
• ATEX and CSA certified

Gases

• CH4
• CO ppm
• CO2 ppm
• H2S
• HCl
• HCl in VCM
• HCN
• N2O ppm
• NH3
• NO
• NO2
• O2
• C2H2
• H2
• LIST OPP:  CO+CO2, CO+CH4

Applications

• Chemical industry
• Petrochemical industry (contaminants like H2S in NG)
• Industrial gas (impurities in pure gases)
• H2 purity measurement
• Semiconductor industry
• Power plants (stack testing of corrosive emission gases)
• H2S emission monitoring (pulp & paper, refineries, bio-gas production)
• ..and more

Customer benefits

• The Multi Pass cell concept combines a long measurement path length with a compact analyzer design
• Measures trace levels of gases, offline in a controlled environment
• Optimize process
• Limited need for maintenance
• Highly reliable real time analyzer
• Reduce emission to the environment
• Easy to install and operate
• Reduce daily operation costs
• Well proven measurement technique
• Low maintenance cost
