Sample Tubes ankersmid-sampling.com

Sampling tube type sampling probe AST for ASP

Applicatie Application

These plug tubes are used in conjunction with the ASP Ankersmid to probe the gas to get the best section of the gas flow.

The most common choice is a tip of the tube around 1 / 3 of the gas flow.
For dust concentrations greater than 2g / m³, we recommend a filter for whether or not combined with an extension tube

Scenario overzicht: Scenario Overview:

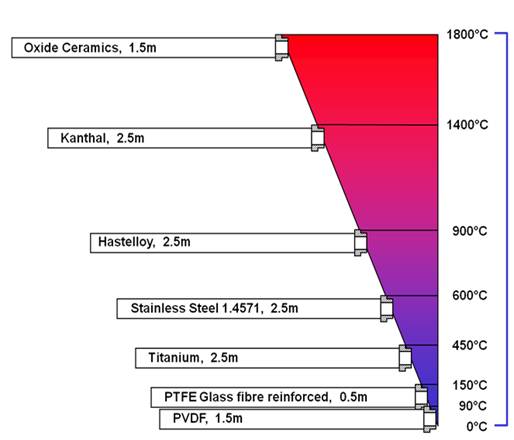

The maximum length depends inter alia on the temperature, gas flow rate and direction of the tube

situatie situation	Type Type	Max.T° [°C] Max.T ° [° C]	Material Material	Aansluiting Connection	Buiten diameter buis Outside diameter pipe
After wet scrubber or high dew point After law scrubber or high dew point	ADT 080 ADT 080 (Demister Tube) (Demi Tube Star)	90°C 90 ° C	PTFE PTFE	G ¾”o G ¾ "o	40-70 40-70
Temp < 150°C Temp <150 ° C	AST 411-412- 413 AST 411-412 - 413	150°C 150 ° C	PTFE PTFE	G ¾”o G ¾ "o	22 22
Temp < 600°C Temp <600 ° C	AST 051- 404 AST 051-404	600°C 600 ° C	SS316 SS316	G ¾”o G ¾ "o	22 22
Temp < 900°C Temp <900 ° C	AST 431-432-433-434 AST 431-432-433-434	900°C 900 ° C	Hastelloy C ^® Hastelloy C ^®	G ¾”o G ¾ "o	22 22
Temp < 1400°C Temp <1400 ° C	AST 435 AST 435	1400°C 1400 ° C	Kanthal ^® Kanthal ^®	G ¾”o G ¾ "o	20 20
HCl or of erg corrosief gas HCl or or very corrosive gas	AST 421-422-423-424 AST 421-422-423-424	450°C 450 ° C	Titanium Titanium	G ¾”o G ¾ "o	22 22
