Electronic Temperature Controller

ATC 600

Application

The ATC 600 two-step electronic temperature controller is especially designed for controlling of different heated components up to 2000 Watt

Description

The two-step electronic temperature controller is mounted in a rail mounting housing. The temperature sensor input is developed for a two-wire PT-100 sensor and is equipped with a protection against short circuit and sensor breach.

The desired operating temperature can be set by using the respective keys. The actual value is indicated via three-digit display and the controller function via LED.

·              In rail mounting enclosure

·              Relay contact 10A switching capacity


·              Three-digit LCD indication

·              Indication selectable for °C or °F

·              Protected parameter level

·              Data storage in case of power failure




Temperature controller type	ATC 600, 230V
Part No.	ATC-602
Temperature control range	adjustable in range -200 to +600°C, adjusted at works to 0 to +200°C
Switching capacity	250VAC/10 A resistive load with relay contact
Control mode	on-off controller
Temperature sensor input	PT100 DIN; 2-conductor with sensor breakage status
Ambient temperature	0 °C to +55 °C, for close-to-close mountage 0 - +40°C
Storage temperature	-40 °C to +70 °C
Switching hysteresis	adjusted at works to 5°C
Accuracy of control	± 0,1% of final value
Electrical connection	terminals 2,5 mm2
Power supply* / Power consumption	230V +/-10%, 50/60Hz, 2VA
Housing version	rail mounting housing EN 50022
International protection type	IP 20 EN60529
Housing material	Polycarbonate

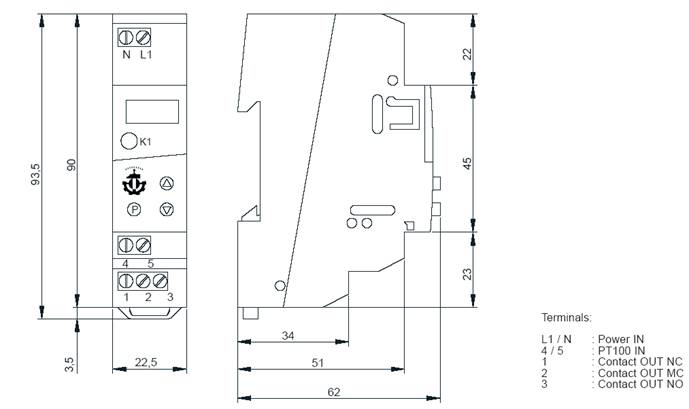

Dimensions in mm	H90xW22,5xD62 mm
Weight	110g
Mounting position	any way you like
Climatic resistance	≤ 75% rel. humidity average/year without occurence of dew
Electrical security	DIN EN 61010 part1 excess voltage category III, contamination level 2
Electromagnetic compatibility	EN61326
Interference transmission	class B
Resistance to jamming	industrial requirement
Indications	actual value, three-digit LCD, switching state relais via LED
