Ankersmid heated lines series AHLX0xx0-PA

Ankersmid heated lines series AHLX0xx0-PA

For lower temperatures

30°C - 120°C



Fixed PTFE-tube

(6x1, 8x1 or 10x1 mm)



ATEX-APPROVED







Application



This electrical heated AHLX0xx0-PA sample tube is designed to transport sample gas through an explosive zone type 1 op 2, but not zones type 0. They can be connected to all Ankersmid sample elements. They are used to keep the necessary gas components above their ACID-dew point, and avoid condensation.

This is a safe way to transport the sample to a heated analyser or the special Ankersmid coolers.







Description



These AHLX0xx0-PA heated lines are manufactured according to the clients needs and completely confectioned in the factory at a fixed length.

The sample line is standard equipped with a PT100 for temperature control. The heater used in this type is ONE serial resistance, twisted around the tube. Due to this construction we can not have cold zones or spots, where a potential blockage can occur.

With flexible isolation out of multi-layer glass wool

A variety of standard lines is available but many options can be supplied as well.

Ready-to-use with multi-pole connector. This heated sample tube is ready-to-use and a stainless steel stud on each tip makes connection easy.



See our code page Chpt. 2.1.1 for all versions.







·               Completely manufactured “ready-to-use”

·               ONE serial heater

·               Never cold spots

·               Tube 4/6, 6/8 or 8/10 mm

·               PTFE-tube fixed

·               Max. available length 48 meter

·               2 sensors PT100 are incorporated at 300 mm from the tip of the line

·               The electric cables are 1,5 meter, to be used only with ATEX-approved temperature controller and limiter

·               CE-certified under no. EX5 07 10 29587 004

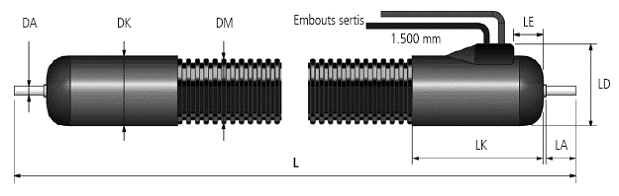

Schematic picture







Free wires

L        Total length

DA      Outside diameter of inner tube

DK      Silicon end connection outside diameter

DM     Corrugated tube outside diameter

LA      Length of connection stud

LK      Length of silicon end connection

LL       Length of cable connection







DN	6x1		8x1	10x1
DA	8 mm		10 mm	12 mm
DK	64 mm
DM	54 mm
LA	25 mm			26 mm
LK	110 mm
LD	80 mm
LE	35 mm
Pressure	100 W/m			125 W/m
Total length	48 m			37 m
Max. working pressure	180 bar	160 bar		120 bar

Electric cables always manufactured at a angle of 90° (see photo)









ATEX Definition







One serial heater  Ready-to-use  CE0123 TUV approval  EX II 2G EEXe ma IIC T3











































Ankersmid purchase codes (extraction, see code page Chapter 2.1.1 for all available versions)





Sample line version	Power supply	Outer diameter	Description code	Length code x (meter)	Beginning and end fitting (1x)
ATEX-approved Self-regulated All temperatures	230VAC	6mm	AHLX0xx0-PA06-230E	AHL097	AHL907
ATEX-approved Self-regulated All temperatures	230VAC	8mm	AHLX0xx0-PA08-230E	AHL098	AHL908
ATEX-approved Self-regulated All temperatures	230VAC	10mm	AHLX0xx0-PA10-230E	AHL099	AHL909





















xx      is to be defined in the power consumption/temperature needed:



10         10W/m =   40°C @ 20°C ambient

15      15W/m =   45°C @ 20°C ambient

25      25W/m =   80°C @ 20°C ambient

45      45W/m = 100°C @ 20°C ambient

60      60W/m = 120°C @ 20°C ambient







Example:     AHLX0450-PA06-230E



Coding:



AHL:           Ankersmid Sampling, Heated Line

X:              ATEX-approved version

045:           Self-regulated ribbon 45W/m (=100°C @ 20°C ambient temperature)

0:              Fixed PTFE-tube

PA:             Outer PA-jacked corrugated and thermal fleece insulation

06:             Outside tube diameter 6mm

230:           Supply 230VAC

E:              PT100 in ATEX-version
