Ankersmid heated line series AHLH2004-PA
For high temperatures
up to 200°C
Interchangeable PTFE-tube
(6x1 , 8x1 or 10x1 mm)
Application
This electrical heated AHLH2004-PA sample tube is designed to be connected to all Ankersmid sample elements. They are used to keep the necessary gas components above their ACID-dew point, and avoid condensation.
This is a safe way to transport the sample to a heated analyser or the special Ankersmid coolers.
Description
Interchangeable sample tube out of PTFE in a second PTFE-tube.
These AHLH2004-PA heated lines are manufactured according to the clients needs and completely confectioned in the factory at a fixed length.
The sample line is standard equipped with a PT100 for temperature control. The heater used in this type is ONE serial resistance, twisted around the tube. Due to this construction we can not have cold zones or spots, where a potential blockage can occur.
Flexible isolation out of multi-layer glass wool.
A variety of standard lines is available but many options can be supplied as well.
Ready-to-use with multi-pole connector.
See our code page Chpt. 2.1.1 for all versions.
· Completely manufactured “ready-to-use”
· ONE serial heater
· Never cold spots
· Tube 6x1 , 8x1 or 10x1 mm
· Integrated PT100 (other sensors on request)
· External temperature controller required
· PTFE-tube interchangeable
ATEX-approval available (see AHLX)

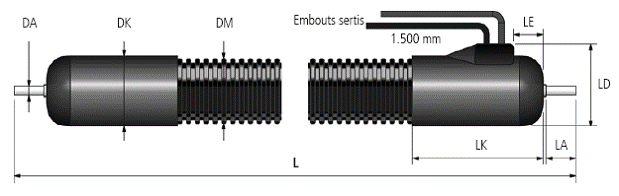

Schematic picture
L Total length
DA Outside diameter of inner tube
DK Silicon end connection outside diameter
DM Corrugated tube outside diameter
LA Length of connection stud
LK Length of silicon end connection
LL Length of cable connection
|
DN |
6x1 |
8x1 |
10x1 |
|
DA |
6 mm |
8 mm |
10 mm |
|
DK |
48 mm |
|
DM |
42.5 mm |
|
LA |
25 mm |
|
LK |
105 mm |
|
LD |
62 mm |
|
LE |
35 mm |
|
Min. bending radius |
200 mm |
Dimension and minimum bending radius (tolerance: length: 2%, diameter: 5%) |
Maximum operating temperatures and power consumption
|
Tmax |
Sample tube |
6x1 mm |
8x1 mm |
10x1 mm |
|
200°C |
Fixed |
100 W/m |
100 W/m |
100 W/m |
|
200°C |
Interchangeable |
100 W/m |
125 W/m |
125 W/m |
(Tolerance on power: 10% between -20°C and +40°C)
Maximum available lengths for power connection 230VAC and 115VAC
|
Tmax |
Power |
6x1 mm |
8x1 mm |
10x1 mm |
|
200°C |
230VAC |
52 |
52 |
52 |
|
200°C |
115VAC |
25 |
25 |
25 |
(Tolerance in length: 2%)
|
Sample line
version |
Power
supply |
Outer
diameter |
Description
code |
Length code x (meter) |
Beginning and end fitting (1x) |
|
PTFE-tube
fixed
Max. 200°C |
230VAC |
6 mm |
AHLH2003-PA06-230P |
AHL030 |
AHL300 |
|
230VAC |
8 mm |
AHLH2003-PA08-230P |
AHL031 |
AHL301 |
|
230VAC |
10 mm |
AHLH2003-PA10-230P |
AHL032 |
AHL302 |
|
PTFE-tube interchangeable
Max. 200°C |
230VAC |
6 mm |
AHLH2004-PA06-230P |
AHL033 |
AHL303 |
|
230VAC |
8 mm |
AHLH2004-PA08-230P |
AHL034 |
AHL304 |
|
230VAC |
10 mm |
AHLH2004-PA10-230P |
AHL035 |
AHL305 |
|
PTFE-tube
fixed
Max. 200°C |
115VAC |
6 mm |
AHLH2003-PA06-115P |
AHL036 |
AHL306 |
|
115VAC |
8 mm |
AHLH2003-PA08-115P |
AHL037 |
AHL307 |
|
115VAC |
10 mm |
AHLH2003-PA10-115P |
AHL038 |
AHL308 |
|
PTFE-tube interchangeable
Max. 200°C |
115VAC |
6 mm |
AHLH2004-PA06-115P |
AHL039 |
AHL309 |
|
115VAC |
8 mm |
AHLH2004-PA08-115P |
AHL040 |
AHL400 |
|
115VAC |
10 mm |
AHLH2004-PA10-115P |
AHL041 |
AHL401 |
Ankersmid purchase codes (extraction, see code page Chapter 2.1.1 for all available versions)
Example: AHLH2004-PA06-230P
Coding:
AHL: Ankersmid Sampling, Heated Line
H: High temperature version
200: Maximum regulated set-point 200°C
4: Interchangeable PTFE-tube with SS stud
PA: Outer PA-jacked corrugated and thermal fleece insulation
06: Outside tube diameter 6mm
230: Supply 230VAC
E: PT100 2-wire version
|
