 ACV Ankersmid ACV Condensate collecting
container type
Application These containers are specially
designed for applications where condensation drain is difficult. If your application occasionally
large amounts of condensation is expected, then the use of these containers to
prevent moisture analyzer key to your system. If you leave blank the output is not
automatically flow is the use of an alarm very strongly recommended
fluid.

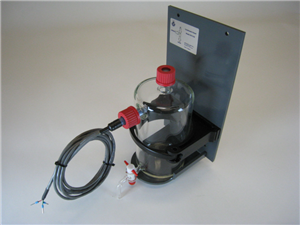

 Description The containers are manufactured from
industrial quality glass, which ensures a very strong corrosion resistance,
while still much condensation can observe The materials in contact with the
gas and condensate are only Duran ® glass and PTFE. Mounting materials are supplied as
standard.
An alarm sensor and
electronics can be ordered separately. This is an alarm or a pump is
switched on.
- Corrosion
Resistant
- Visible liquid
level
- Different possible
connections
- Liquid Alarm
Optional
- Output Crane (depending on model)
standard
Model |
Max
pressure |
Temperature
range |
Material |
Volume |
ACV 010
|
2 Bar |
0-80 ° C |
Duran ® glass |
+ / - 1 liter |
ACV 020
|
0.5 Bar |
0-50 ° C |
PVC |
+ / - 1 liter |
ACV 030
|
10 Bar |
0-120 ° C |
PVDF |
+ / - 1 liter |
ACV 040
|
6 Bar |
0-140 ° C |
PTFE |
+ / - 1 liter |
|
|
|
|
|
